C P R I APPROVED

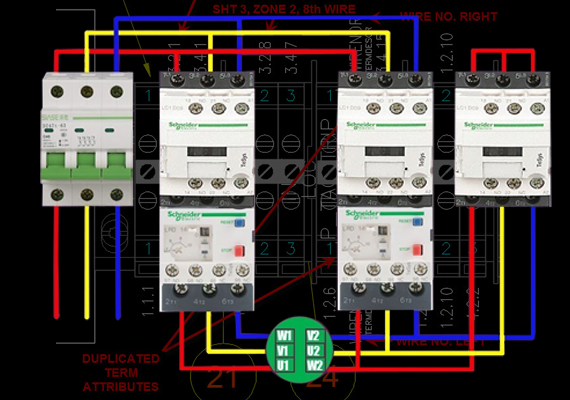

A circuit diagram (also known as an electrical diagram, elementary diagram, or electronic schematic) is a simplified conventional graphical representation of an electrical circuit. We have designed and executed Mega Residential Complex, Commercial Complex, IT Park, Industrial Complex, Hotel, Multiplex Complex, Outdoor Yard Lighting, Toll Plaza, and high raised Buildings of Electrical Installation works such as Erection of Sub-stations up to 11KV, 22KV, 33KV, 66KV, 110KV, 220KV Indoor and Outdoor Operations, M.V panels, Laying of all types of cables including terminations-Heat shrink/Push on and Soldering Type etc.,

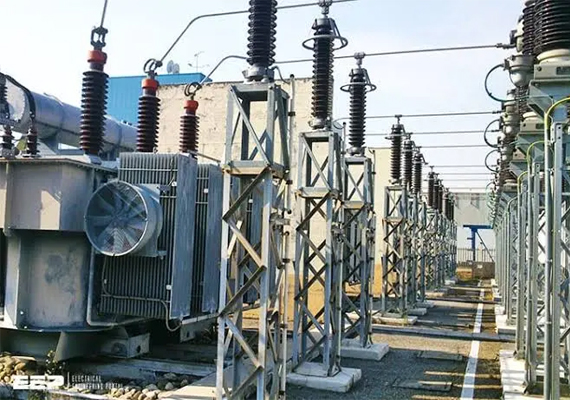

Erection of Sub-stations up to 11KV, 22KV, 33KV, 66KV, 110KV, 220KV Indoor and Outdoor Operations, M.V panels, Laying of all types of cables including terminations-Heat shrink/Push on and Soldering Type etc., Erection and Commissioning of D.G Sets of various capacities and Internal & External Electrification Works for Reputed Organizations.In addition to the above, we also undertake preparation of Drawings and get them Approved by Electrical Inspectorate and obtain Safety Certificates after the Completion of works. We have qualified and experienced Engineers and Site Supervisors for Supervision and skilled and semi-skilled workers to carry out the various works to complete the projects in time as per the rules and regulations of Electrical Inspectorate.

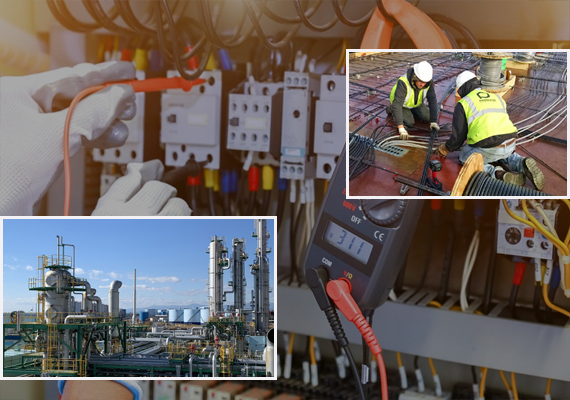

We are External and Internal, Industries & Buildings Electrification works which include Commercial Electrification Work, Industrial Electrification, Residential Electrification Work, Commercial Electrification and Electrical Wire Contractor. These services are rendered by our highly skilled professionals using sophisticated tools and the latest technology in sync with universally accepted standards. We make sure that each and every work is done under the supervision of our expert and diligent electrical engineers. We cater to both industrial and residential electronic and electrical services needs.

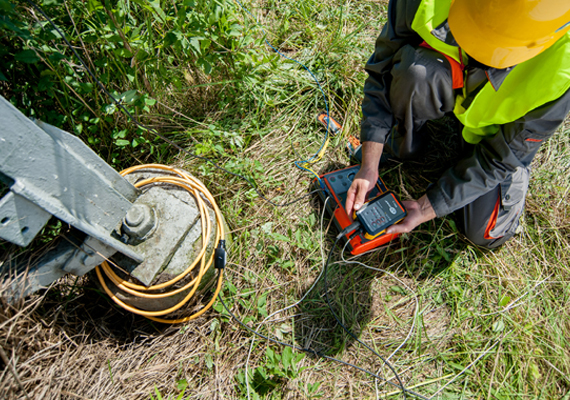

Ground resistance testing covers the testing of earth electrodes and the measurement of soil resistivity. Megger offers top end systems for design and soil surveys as well as tough easy to use testers for field engineers. We have tried to make the testers self checking as much as we can, to allow you to concentrate on collating and understanding the results. The instrument requirements depend on the range of applications.

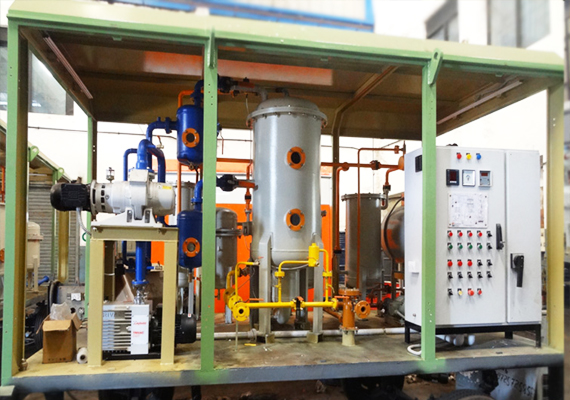

we are involved in providing Transformer Oil Filtration Service. Transformer oil filtration is carried out with Ultra High Vacuum oil filter machine of adequate capacity. Our mobile oil filtration plant is designed to remove dissolved moisture, dirt, air and other gases from the transformer oil. This two stage Mobile filtration plant operates on the principle of Low Temperature and High Vacuum. Unfiltered oil is taken in to the system through the inlet valve. Then the oil is pumped to the system through positive displacement pump. Preliminary Coarse filters protect the pump by entering solid and magnetic particles up to 1 mm size. The oil is heated up to 60-65°C. After heating the oil passes through the cartridge filters where the particles up to 2 microns are filtered. Then the oil is passed through a specially designed vacuum chamber, where the moisture, air and other gases are extracted from the oil. The vacuum chamber is designed in such a way that the oil is spread out and is allowed to fall by gravity over the media inside, forming a thin film of oil providing a large surface area exposed to vacuum. With this exposure, the dissolved moisture and gases are evacuated to improve the insulating properties of transformer oil.
